Push Pull Cable Selection
A common sales enquiry we often receive at Flexible Drive is a request to supply a replacement push pull cable for automotive, marine, industrial or agricultural equipment.
We supply a large range of these cables in various configurations and lengths.
To help our sales staff identify what cable you require, we need to know a few details, see below or download our 5 easy steps to ordering your cable below (click on this link to match your components):
- The overall length of the cable
- The stroke of the cable (how far it travels in and out)
- The ends of the cable, are they threaded rods, if so the size of the threads on the ends of the rods (also if it's imperial or metric)
- The way the cable secures to the vehicle (clamp style or threaded bulkhead)
- Is it used for marine? (these are stainless steel construction cables)
Push pull cables come with various ends from bare wire to threaded rods and various fittings or control handles, some common types:

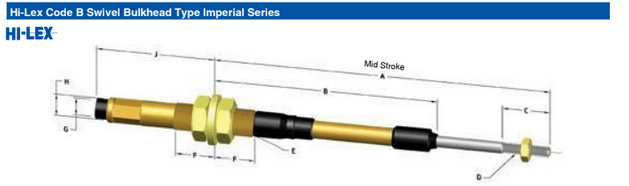

Threaded rod end with bulkhead:

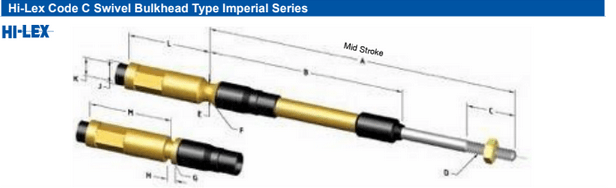

Threaded rod end with clamp:

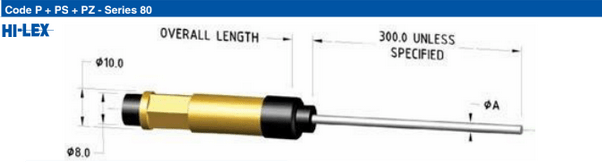

Bare wire ends:

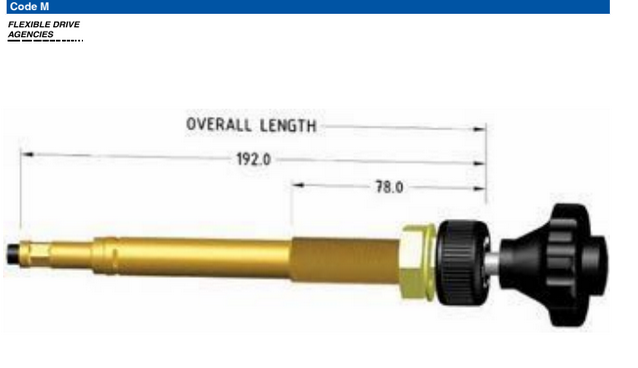

Also various control handles such as fine adjustment:
If you want to see our full range of cables, you can visit our product catalogue located below, cables are listed from page 154 to page 170:
If it’s not in our catalogue, we also have in-house manufacturing capabilities through our custom job production line, we have over 70 years of cable making expertise.
